Pivoting Edge Clamp - Tall
View product series

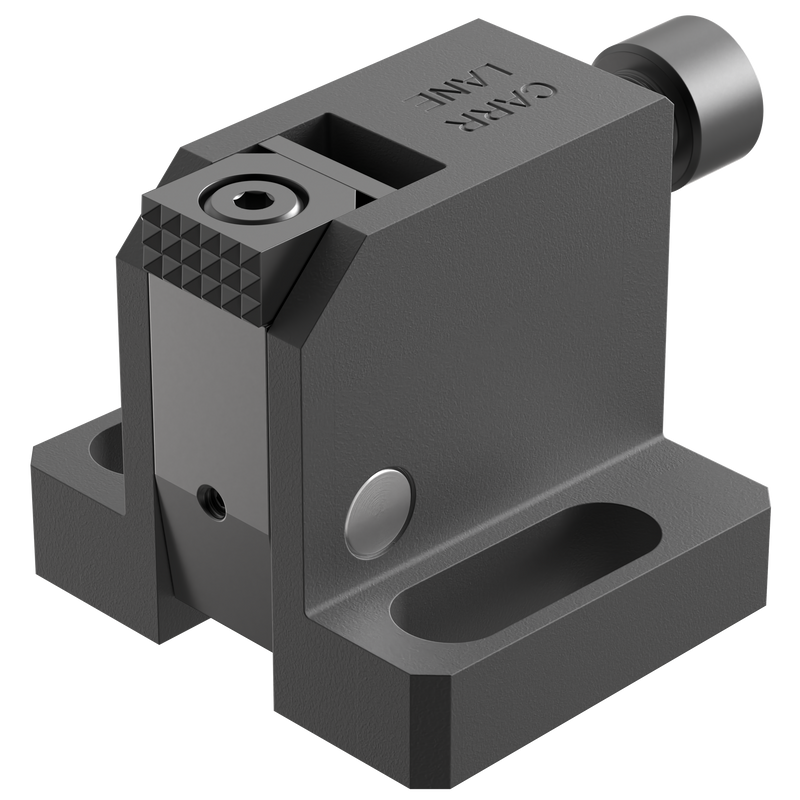

Pivoting Edge Clamp - Tall

MANUFACTURER Carr Lane Manufacturing
  • Product Attributes
  • Downloadable Files
  • Videos
  • Specifications

  • The Pivoting Edge Clamp - Tall (CL-100-PEC) from Carr Lane Manufacturing is a precision workholding solution designed for secure clamping on edge surfaces. The pivoting design allows for flexible positioning and accommodation of varying workpiece geometries, making it ideal for milling, drilling, and assembly operations. Constructed with durable materials for reliable performance in demanding shop environments, this tall-profile clamp delivers consistent holding force while minimizing setup time. Perfect for job shops, tool rooms, and production facilities requiring versatile edge clamping capabilities.

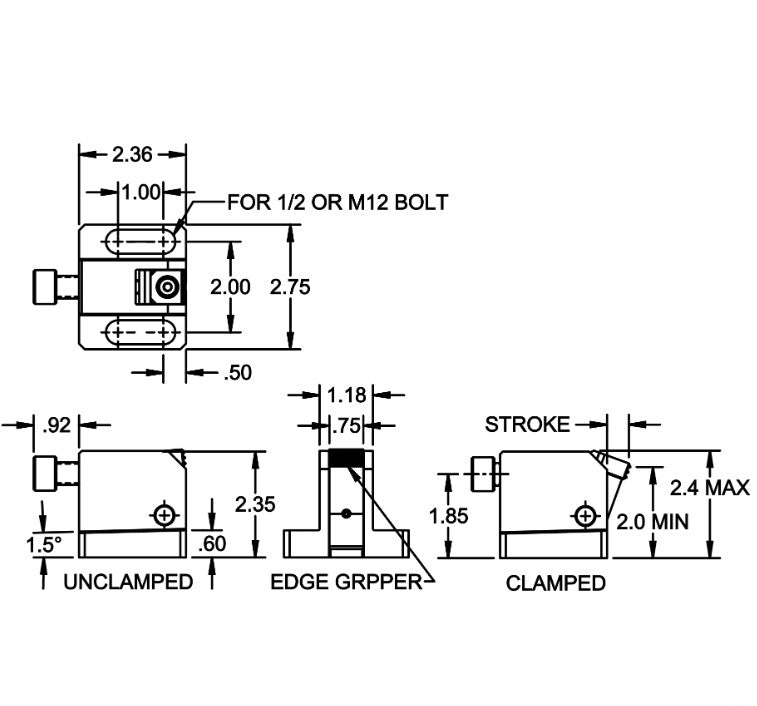

  • 2D Drawing
Options
  • CL-100-PEC
Mounting Screw Size Maximum Clamping Stroke Ball End Thrust Screw Edge Gripper Thrust Screw Size
1/2-13 or M12 1/2 CL-80-BTS-1.75 CL-12-EG-6 1/2-20
Price/Quantity
  • $244.02/ea
Availability
  • Ships from supplier
Request a Quote
