LOCKING PIN BUSHINGS

LOCKING PIN BUSHINGS

Showing 3 out of 3 products

Filters

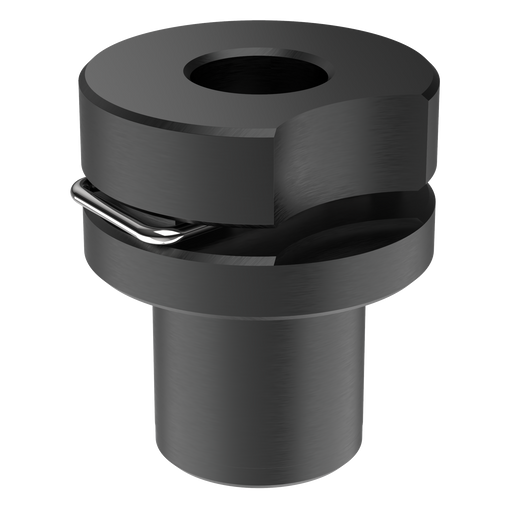

Carr Lane Locking Pin Bushing

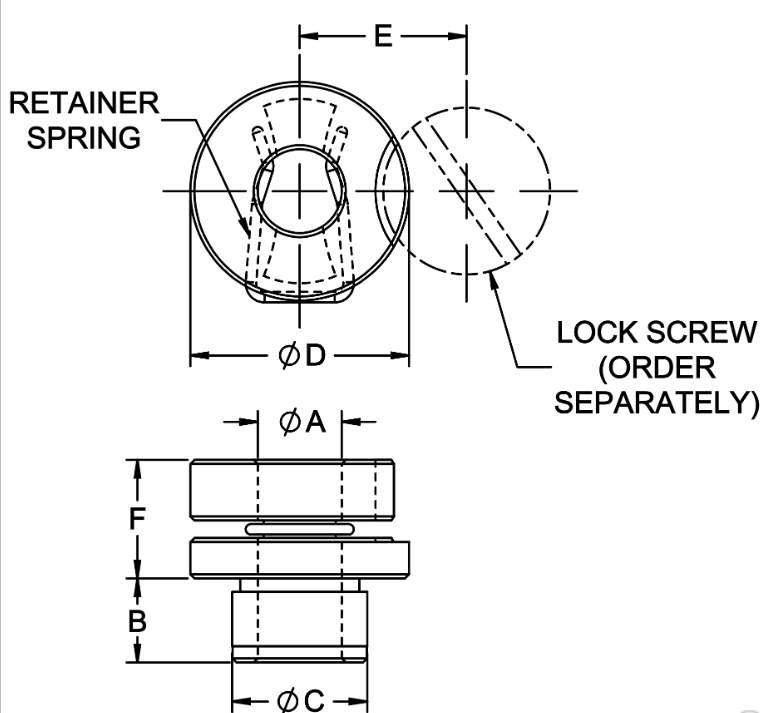

View 2d drawing

Carr Lane Locking Pin Bushing

$23.94 - $32.65
$23.94 - $32.65
$23.94 - $32.65
from $23.94 /ea
Show range
Options
Inch or Metric ID Diameter (Nominal) ID Diameter (Actual) OD Diameter (Nominal) OD Diameter (Actual) Handle Diameter Head Height Body Height
INCH 3/16 0.1868 13/32 0.4078 13/16 0.44 0.31
INCH 1/4 0.2493 13/32 0.4078 13/16 0.44 0.31
INCH 1/4 0.2493 13/32 0.4078 13/16 0.44 0.5
INCH 5/16 0.3118 1/2 0.5017 13/16 0.44 0.31
INCH 5/16 0.3118 1/2 0.5017 13/16 0.44 0.37
INCH 5/16 5/16 1/2 0.5017 13/16 0.44 0.5
INCH 3/8 0.3743 5/8 0.6267 13/16 0.44 0.31
INCH 3/8 0.3743 5/8 0.6267 13/16 0.44 0.5
INCH 1/2 0.4993 3/4 0.7518 1-1/16 0.44 0.5
INCH 1/2 0.4993 3/4 0.7518 1-1/16 0.44 0.75
METRIC 10 9.982 16 16.043 22 12 12
METRIC 12 11.982 20 20.046 26 12 18
METRIC 6 5.982 10 10.038 22 12 8
METRIC 8 7.982 13 13.043 22 12 10
Price/Quantity
  • $23.94/ea
  • $23.94/ea
  • $25.86/ea
  • $25.86/ea
  • $23.94/ea
  • $25.86/ea
  • $28.48/ea
  • $26.50/ea
  • $32.65/ea
  • $30.38/ea
  • $28.48/ea
  • $32.65/ea
  • $25.86/ea
  • $25.86/ea
Availability
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • 4 in stock
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
Request a Quote

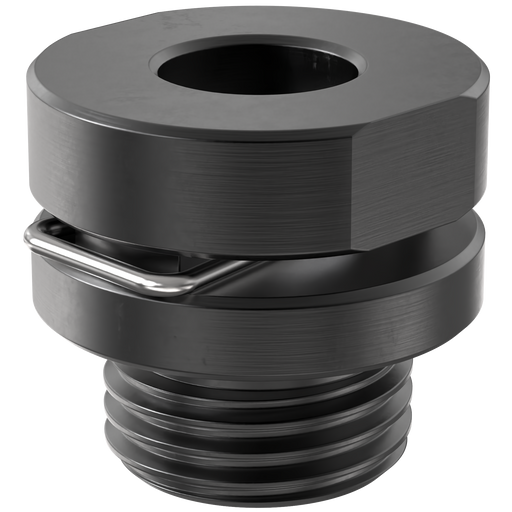

Carr Lane Threaded Locking Pin Bushing - Stainless Steel

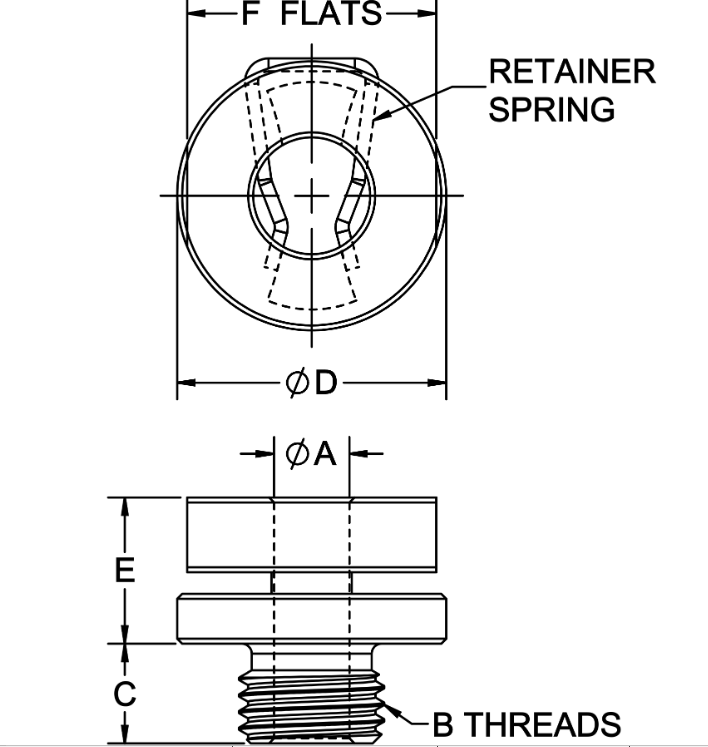

View 2d drawing

Carr Lane Threaded Locking Pin Bushing - Stainless Steel

$24.44 - $33.32
$24.44 - $33.32
$24.44 - $33.32
from $24.44 /ea
Show range
Options
Inch or Metric ID Diameter (Nominal) ID Diameter (Actual) Handle Diameter External Thread External Thread Pitch Head Height Body Height
INCH 3/16 0.2268 0.81 7/16-20 0.44 0.3
INCH 1/4 0.2893 0.81 1/2-20 0.44 0.3
INCH 5/16 0.3518 0.81 9/16-18 0.44 0.3
INCH 3/8 0.4143 0.81 5/8-18 0.44 0.35
INCH 1/2 0.5393 1.06 3/4-16 0.44 0.375
METRIC 10 11 22 M18X1.5 1.5 12 8.9
METRIC 12 13 M20X1.5 1.5 26 8.9
METRIC 6 7 22 M12X1.5 1.25 12 7.6
METRIC 8 9 22 M16X1.5 1.5 12 7.6
Price/Quantity
  • $24.44/ea
  • $24.44/ea
  • $26.40/ea
  • $29.07/ea
  • $33.32/ea
  • $29.07/ea
  • $33.32/ea
  • $26.40/ea
  • $26.40/ea
Availability
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
Request a Quote
Carr Lane Locking Pin Bushing - Oversize ID - Stainless Steel
View 2d drawing

Carr Lane Locking Pin Bushing - Oversize ID - Stainless Steel

$23.94 - $32.65
$23.94 - $32.65
$23.94 - $32.65
from $23.94 /ea
Show range
Options
Inch or Metric ID Diameter (Nominal) ID Diameter (Actual) OD Diameter (Nominal) OD Diameter (Actual) Handle Diameter Head Height Body Height
INCH 1/4 0.2893 13/32 0.4078 13/16 0.44 0.31
INCH 5/16 0.3518 1/2 0.5017 13/16 0.44 0.31
INCH 3/8 0.4143 5/8 0.6267 13/16 0.44 0.31
INCH 1/2 0.5393 3/4 0.7518 1-1/16 0.44 0.5
METRIC 10 11 16 16.043 22 12 12
METRIC 12 13 20 20.046 26 12 18
METRIC 6 7 10 10.038 22 12 8
METRIC 8 9 13 13.043 22 12 10
Price/Quantity
  • $23.94/ea
  • $25.86/ea
  • $28.48/ea
  • $32.65/ea
  • $28.48/ea
  • $32.65/ea
  • $25.86/ea
  • $25.86/ea
Availability
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
Request a Quote

Can’t Find What You Need?

Contact Jerico and we’ll get it for you.
