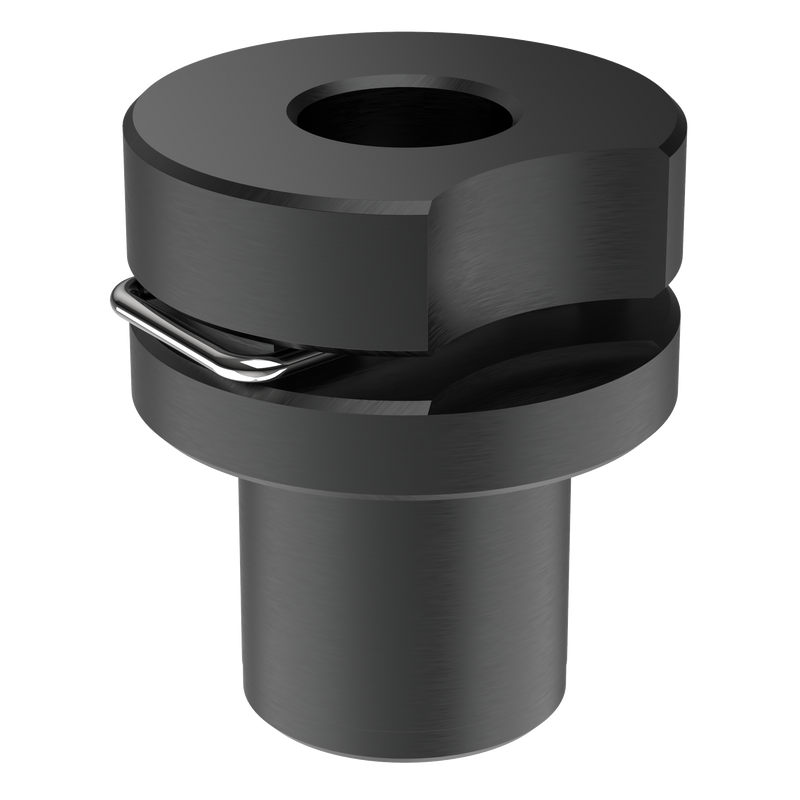

Locking Pin Bushing - Oversize ID - Stainless Steel
MANUFACTURER Carr Lane Manufacturing
- Specifications
Options
-
CL-4-LPB-OS
-
CL-5-LPB-OS
-
CL-6-LPB-OS
-
CL-8-LPB-OS
-
CLM-10-LPB-OS
-
CLM-12-LPB-OS
-
CLM-6-LPB-OS
-
CLM-8-LPB-OS

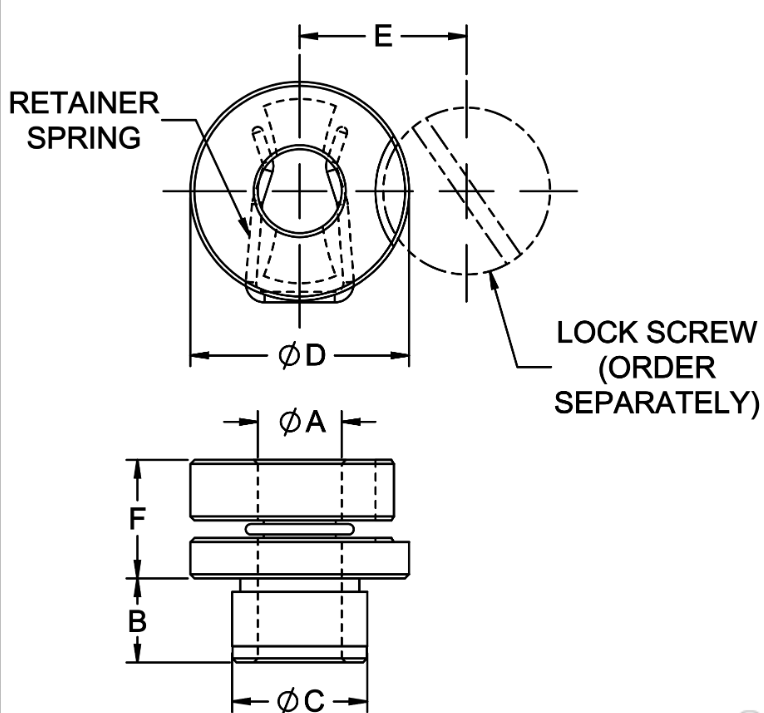

| Inch or Metric | ID Diameter (Nominal) | ID Diameter (Actual) | OD Diameter (Nominal) | OD Diameter (Actual) | Handle Diameter | Head Height | Body Height |
|---|---|---|---|---|---|---|---|
| INCH | 1/4 | 0.2893 | 13/32 | 0.4078 | 13/16 | 0.44 | 0.31 |
| INCH | 5/16 | 0.3518 | 1/2 | 0.5017 | 13/16 | 0.44 | 0.31 |
| INCH | 3/8 | 0.4143 | 5/8 | 0.6267 | 13/16 | 0.44 | 0.31 |
| INCH | 1/2 | 0.5393 | 3/4 | 0.7518 | 1-1/16 | 0.44 | 0.5 |
| METRIC | 10 | 11 | 16 | 16.043 | 22 | 12 | 12 |
| METRIC | 12 | 13 | 20 | 20.046 | 26 | 12 | 18 |
| METRIC | 6 | 7 | 10 | 10.038 | 22 | 12 | 8 |
| METRIC | 8 | 9 | 13 | 13.043 | 22 | 12 | 10 |
