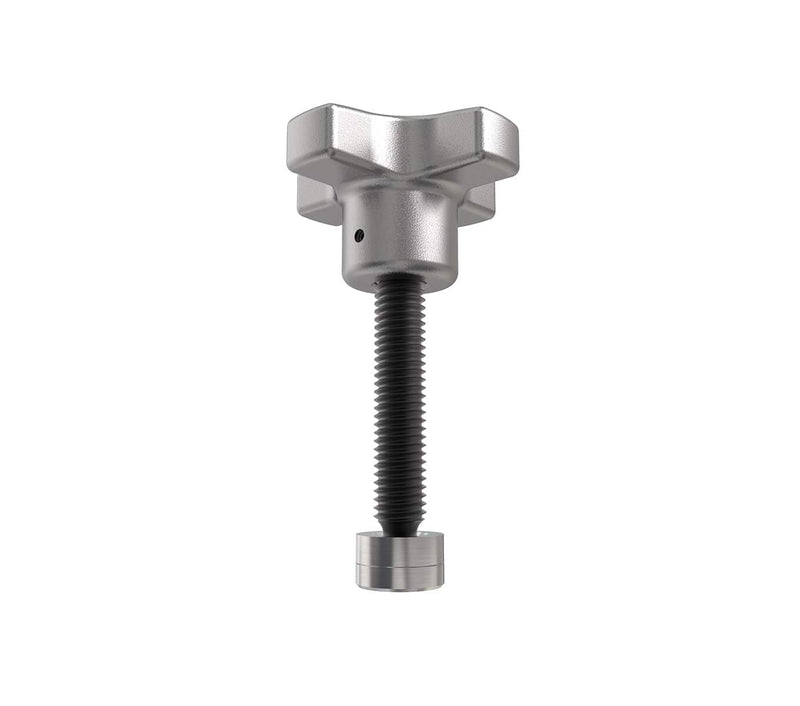

Jergens Hand Knob Toggle Screw
MANUFACTURER jergens
- Product Attributes
-
Jergens Tru-Center™ Hand Knob Toggle Screws are designed for clamping irregular surfaces while the swivel shoe prevents the marring of polished surfaces. The shoe is hardened for longer life. The cast-iron hand knob is included for hand tightening. To remove the pad for installation, pull and turn counter-clockwise.Our patented Tru-Center™ products are the only pad type on the market to provide true center-line clamping. The center line of the pad and the center line of the nut always intersect at the point of contact between the pad and the workpiece.
Features, Benefits, & Product Specifications:- Stem Material & Finish: Stressproof® Steel, Black Oxide
- Pad Material & Finish: 4140 Steel, Zinc Plated
- Head Material & Finish: Cast Iron, Cadmium Plated
- Thread: 2A-UNC
- The pad features angular movement on either side of the center (total 16°)
-
