Jergens Checking Ball with Shoulder
MANUFACTURER jergens
- Product Attributes
-

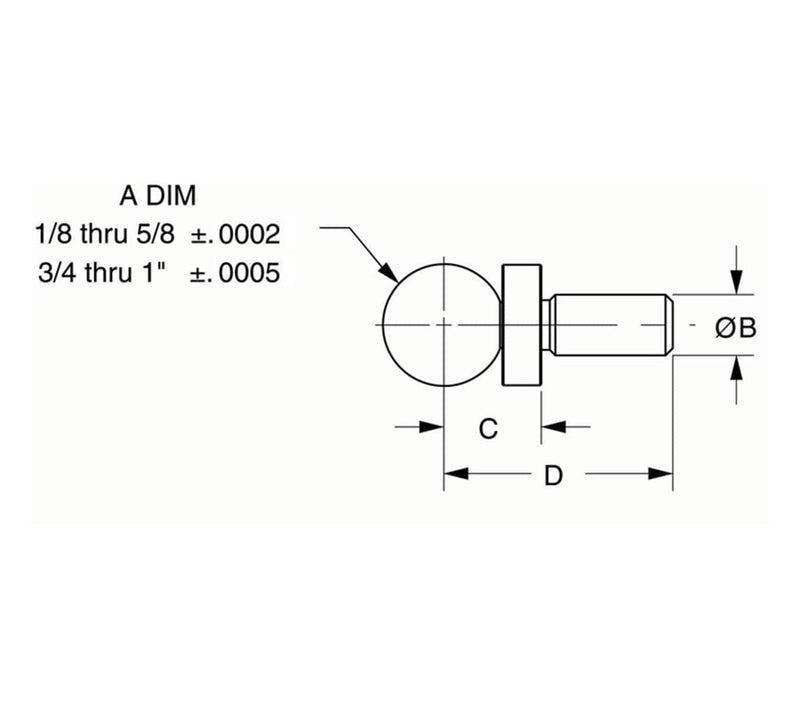

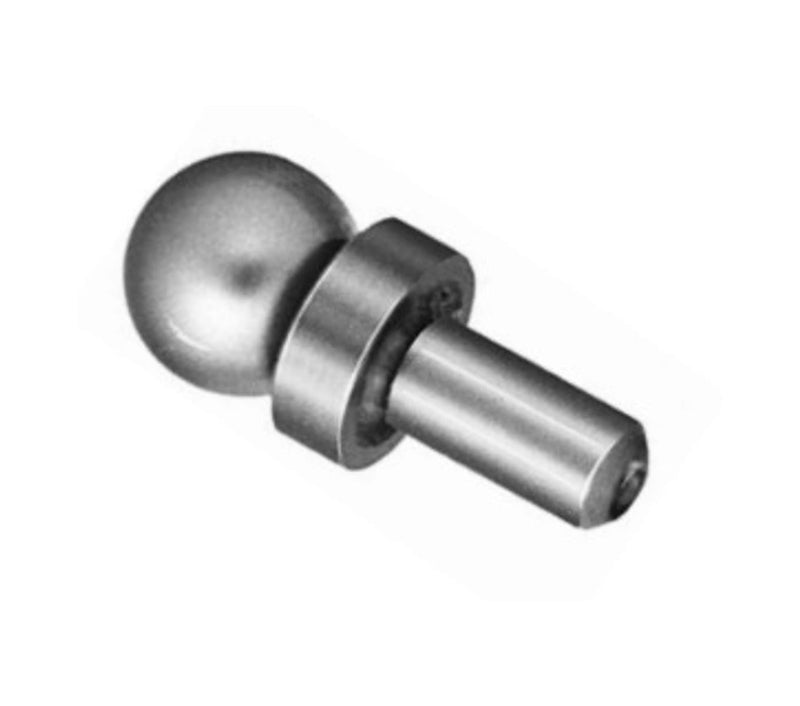

Jergens Checking Balls with Reference Shoulders are high precision stainless steel, made to closer tolerances, and avoid excessive side forces. The accurately located shoulder provides for positive positioning, re-positioning, or replacement.Jergens Checking Balls with Reference Shoulder & Tapped Shank can be pulled into a hole or bushing from below without applying pressure on the ball (accomplished by using a cap screw in the tapped hole in the shank).
Features, Benefits, & Product Specifications:- Material: 440C Stainless Steel Hardened
- Eccentricity of Ball to Shank: 0.0002" TIR (max.)
- Two-piece welded construction
Note(s):- Part No. 29010 is supplied with a tungsten carbide ball only (RC 91.5-92.5).
- Metric measurements are available upon request.
-
