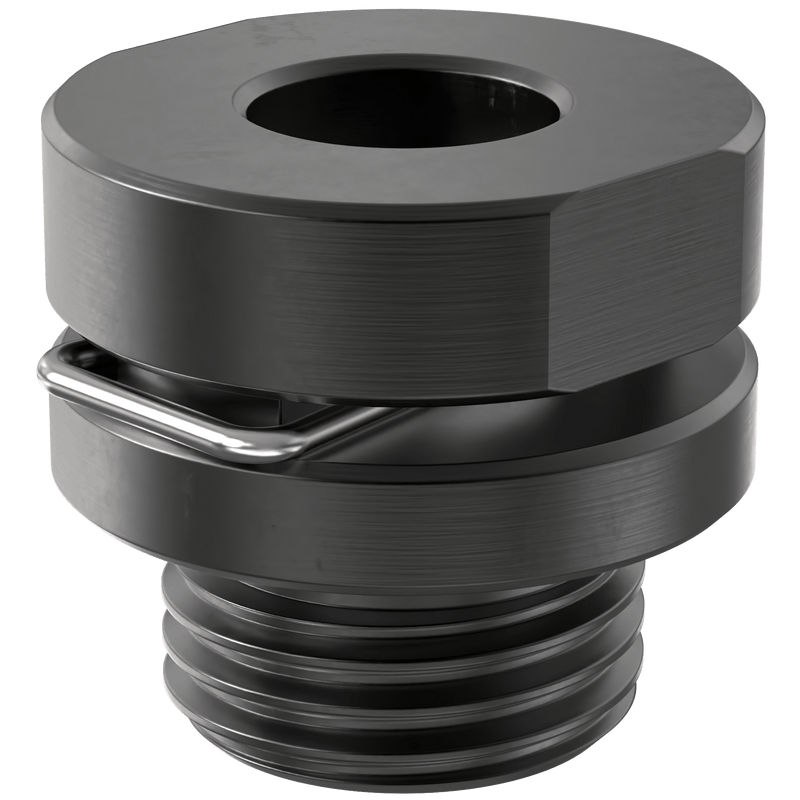

Carr Lane Threaded Locking Pin Bushing - Stainless Steel
View product series

Carr Lane Threaded Locking Pin Bushing - Stainless Steel

MANUFACTURER Carr Lane Manufacturing
  • Specifications

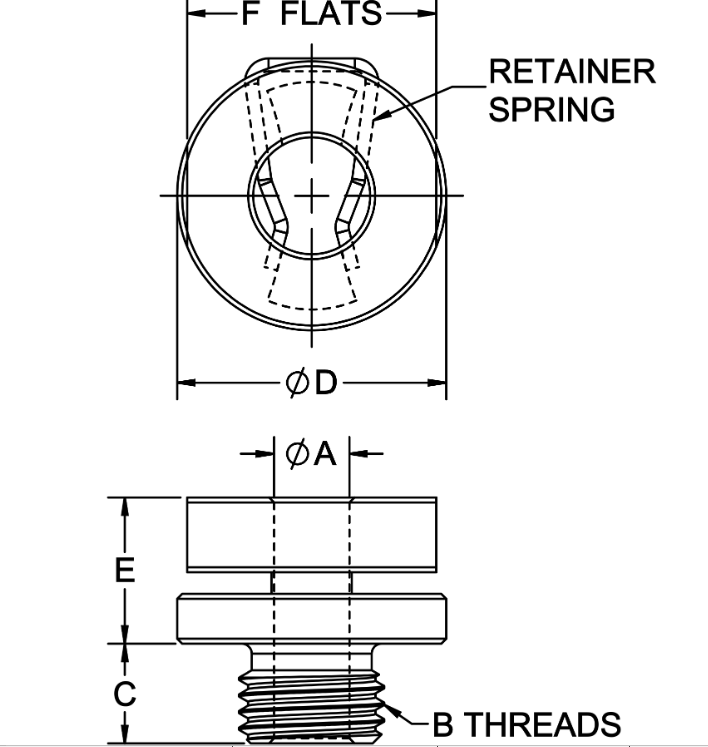

  • 2D Drawing
Options
  • CL-3-TLPB-OS
  • CL-4-TLPB-OS
  • CL-5-TLPB-OS
  • CL-6-TLPB-OS
  • CL-8-TLPB-OS
  • CLM-10-TLPB-OS
  • CLM-12-TLPB-OS
  • CLM-6-TLPB-OS
  • CLM-8-TLPB-OS
Inch or Metric ID Diameter (Nominal) ID Diameter (Actual) Handle Diameter External Thread External Thread Pitch Head Height Body Height
INCH 3/16 0.2268 0.81 7/16-20 0.44 0.3
INCH 1/4 0.2893 0.81 1/2-20 0.44 0.3
INCH 5/16 0.3518 0.81 9/16-18 0.44 0.3
INCH 3/8 0.4143 0.81 5/8-18 0.44 0.35
INCH 1/2 0.5393 1.06 3/4-16 0.44 0.375
METRIC 10 11 22 M18X1.5 1.5 12 8.9
METRIC 12 13 M20X1.5 1.5 26 8.9
METRIC 6 7 22 M12X1.5 1.25 12 7.6
METRIC 8 9 22 M16X1.5 1.5 12 7.6
Price/Quantity
  • $23.50/ea
  • $23.50/ea
  • $25.38/ea
  • $27.95/ea
  • $32.04/ea
  • $27.95/ea
  • $32.04/ea
  • $25.38/ea
  • $25.38/ea
Availability
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
  • Ships from supplier
Request a Quote
